Food grade aluminum plastic composite caps are an essential component of modern food packaging, widely used for sealing bottles containing spirits, beverages, edible oils, and more. By combining the advantages of aluminum and plastic, these caps offer excellent protection for the contents, ensuring food safety and quality.
What Is a Food Grade Aluminum Plastic Composite Cap?
A food grade aluminum plastic composite cap is a bottle closure made primarily from aluminum alloy and food-grade plastic. Its key functions include:
Sealing Performance: Prevents leakage, blocks oxygen, moisture, and microorganisms, preserves product quality, and extends shelf life.
Safety: All materials that come into contact with the contents must comply with food-grade safety standards — non-toxic, harmless, and non-reactive.
Functionality: Offers ease of opening and, in some cases, re-sealability. Some caps also feature anti-theft or anti-counterfeit functionality.
Aesthetic Appeal: The metallic sheen and printable surface of aluminum offer strong visual branding opportunities.
Materials Used in Aluminum-Plastic Anti-Counterfeit Bottle Caps
Aluminum
Common alloys such as 8011 and 3105 are used for their ductility, strength, and corrosion resistance.
Surface treatments may include anodizing, painting, and printing to enhance aesthetics and protection.
Plastic
Liner/Core Materials – Must be food-grade, typically:
Polyethylene (PE): Offers good chemical stability and flexibility.
Polypropylene (PP): Higher temperature resistance and strength.
Thermoplastic Elastomers (TPE): Provides excellent sealing elasticity and tactile feel.
EVA (Ethylene-Vinyl Acetate): Used as a foam liner for cushioning and sealing.
PVC and Modified PVC: Previously common, but now scrutinized due to environmental and plasticizer concerns.
Other Plastic Components: Used in caps with complex opening mechanisms.

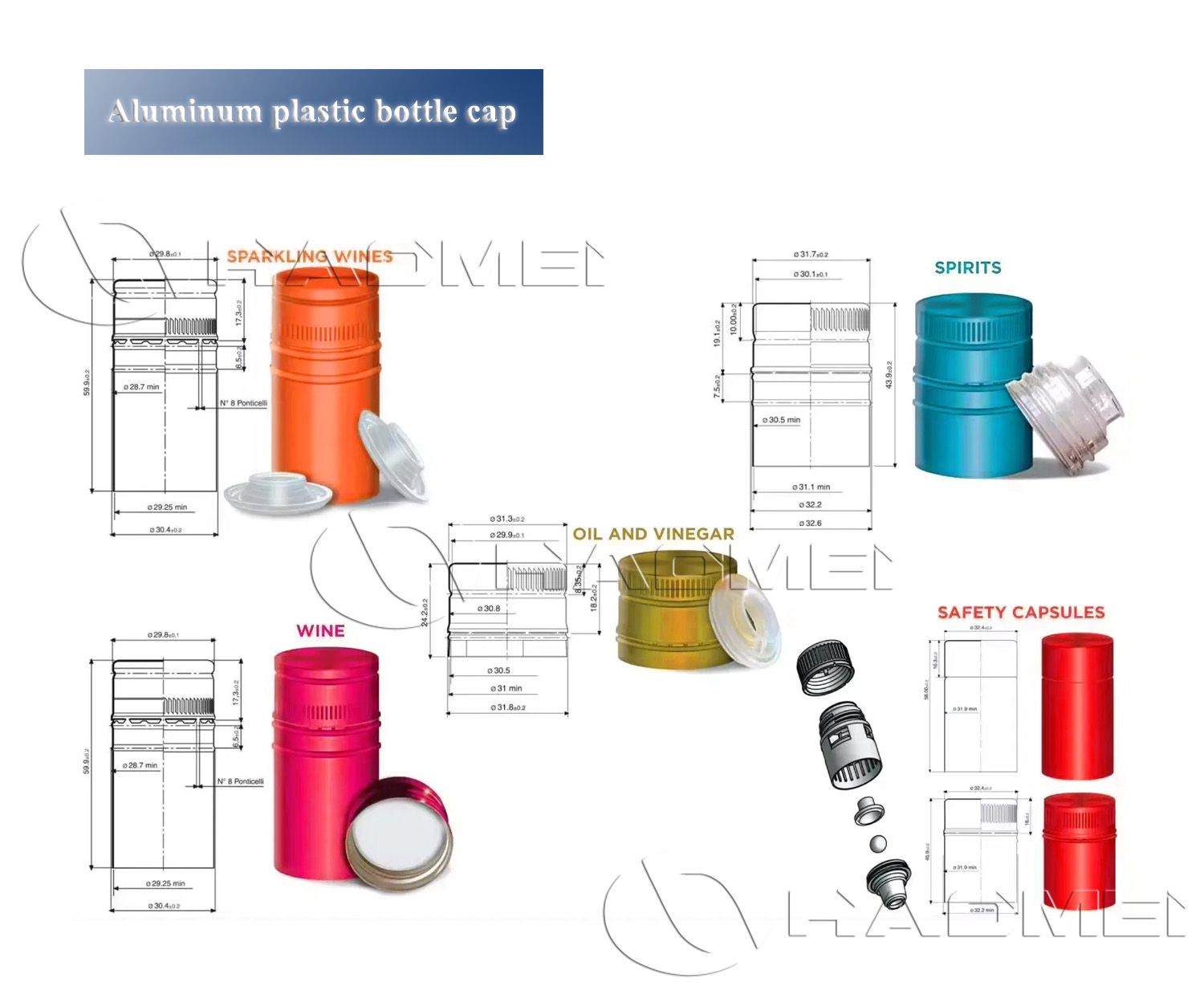

Main Types and Structures
(1) Screw-On Aluminum-Plastic Caps:
Structure: Typically consist of an aluminum shell and an inner plastic thread structure with a sealing liner.
Applications: Widely used in premium alcoholic beverages (e.g., wine, spirits), olive oil, condiments, etc.
(2) ROPP (Roll-On Pilfer-Proof Caps):
Structure: An unthreaded aluminum shell with a food-grade liner (e.g., PE, PVC, special elastomers). During capping, special equipment crimps the shell to form threads and a tamper-evident band.
Applications: Popular in alcohol, beverages, medicinal syrups, and edible oil packaging.
(3) Other Specialty Composite Caps:
Examples include press-type or pull-ring caps that use aluminum-plastic structures to meet specific functional or ergonomic needs.
How Are Aluminum-Plastic Anti-Counterfeit Caps Manufactured?
| Raw Material Preparation | Select food-grade aluminum alloy and plastic materials (e.g., PP, HDPE). |
| Stamping | Aluminum foil is stamped into cap blanks using precision machinery. |
| Anodizing | Improves corrosion resistance of the aluminum surface. |
| Cleaning & Drying | Ensures hygienic standards by removing contaminants. |
| Plastic Insert Molding | Injection or compression molding is used to form the plastic liner. |
| Aluminum-Plastic Assembly | Caps and liners are joined using heat sealing or riveting in a cleanroom. |
| Quality Inspection | Visual, dimensional, tensile, and sealing tests are conducted. |
| Packaging & Warehousing | Caps are counted, packaged, and stored for distribution. |
Food Grade Standards and Quality Control
All materials that directly or indirectly contact food or pharmaceuticals (aluminum, plastic, coatings, inks, liners) must comply with food safety standards such as:
China’s GB 4806 series
US FDA CFR Title 21
EU (EU) No. 10/2011
Production facilities must also meet GMP (Good Manufacturing Practices) or equivalent hygiene protocols to avoid contamination.
National and International Certifications:
GB 4806 (China) – National food contact material standards
EC No. 1935/2004 and EU 10/2011 (EU)
FDA 21 CFR (USA)
ISO 9001 Quality Management
ISO 22000 Food Safety Management
Challenges and Future Development Trends
1. Sustainability and Environmental Protection:
Improved Recyclability: Composite structures are harder to recycle. The trend is toward easier separation or single-material alternatives (e.g., full aluminum or high-performance plastics).
Use of Recycled Materials: Exploring safe incorporation of recycled aluminum or plastics in non-contact parts.
Lightweight Design: Reducing material use to minimize carbon footprint.
2. Functional Integration and Smart Technology:
Enhanced Anti-Counterfeiting: Integrating laser engraving, invisible markings, RFID/NFC chips for traceability.
Smart Caps: Features like opening indicators, temperature sensors, and medication reminders.
Improved User Experience: Easier-to-open designs, including those suitable for seniors or children.
3. New Materials and Processes:
High-Performance Sealing Materials: Advanced liners for better sealing, chemical resistance, and temperature tolerance.
Eco-Friendly Coatings and Inks: Use of water-based coatings and UV-curable inks.
Digital Manufacturing: Use of 3D printing for prototyping and adoption of automated smart production lines.
4. Regulatory Compliance:
As food contact material regulations become stricter globally, companies must invest continuously in R&D to ensure ongoing compliance.
